RAEGuard 2 PID Pretreatment Device матрица артикулов

Two-stage outdoor filter for wet/dusty sites. Drying is intended for benzene / toluene / xylene. Replace media every 1–3 months. Detector sold separately.

Запросить цену Открыть карточку RAEGuard 2 PID

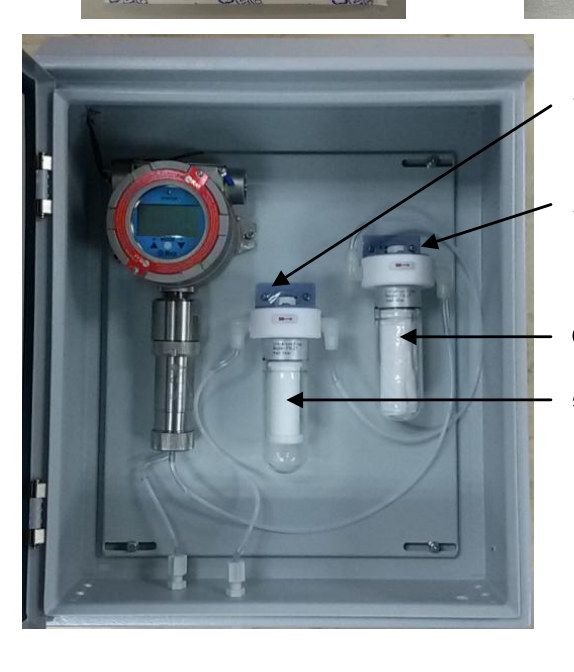

Inside the box: host and two-stage filters — Host, two filter tubes and plumbing with the door open

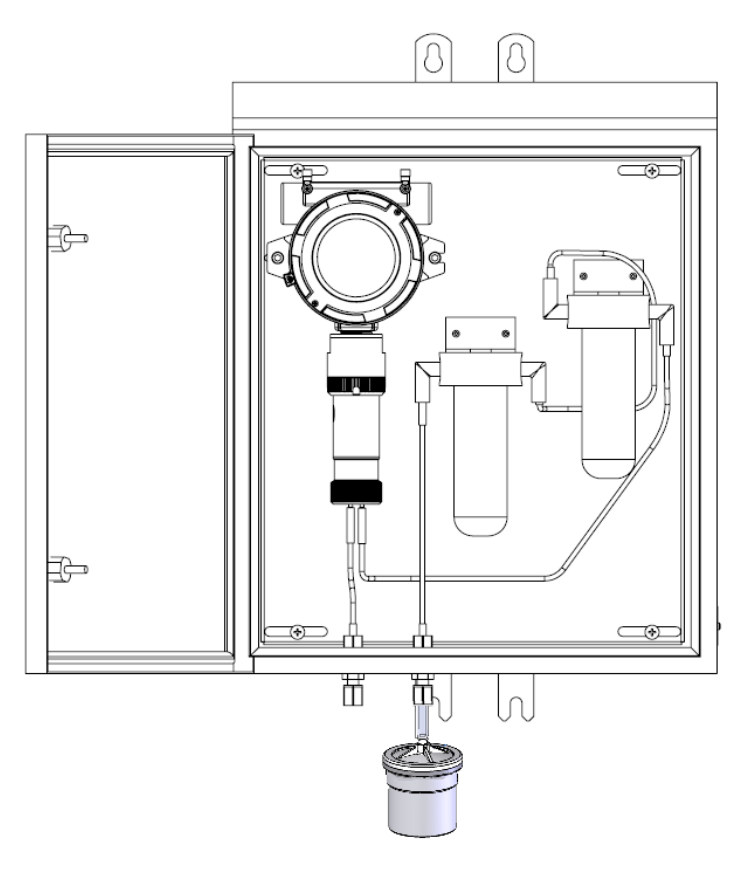

Pretreatment enclosure layout — Box, host, first / second stage, trap under the box

Flow Through onlyFor pumped RAEGuard 2 PID. Detector is not in the box.

Two-stage pathTeflon cartridge then CaCl₂, then DigiPID.

BTX dryingCaCl₂ drying is intended for benzene, toluene and xylene.

Box ≥ 30 cm up2″ riser mount. Replace media every 1–3 months in wet dust.

Sample→Water trap→1st Teflon→2nd CaCl₂→DigiPID IN

The pretreatment enclosure is for Flow Through RAEGuard 2 PID outdoors in wet or dusty air: a first-stage Teflon cartridge knocks out dust, a second-stage CaCl₂ tube dries the sample, a water trap under the box catches liquid, then gas reaches DigiPID. The box also shades and weathers the host.

Kit D03-0014-C00 does not include the detector — order D03-0004-C00 / D03-0005-C00. CaCl₂ adsorbs some VOCs, so this drying path is for benzene, toluene and xylene only. For heavier vapours such as gasoline or diesel, skip the salt and use filtration plus the water trap.

Схема

Five parts: outdoor box, Flow Through host, first-stage filter, second-stage filter, water-trap kit. Two M6×10 screws hold the host in the box with the sensor hanging down.

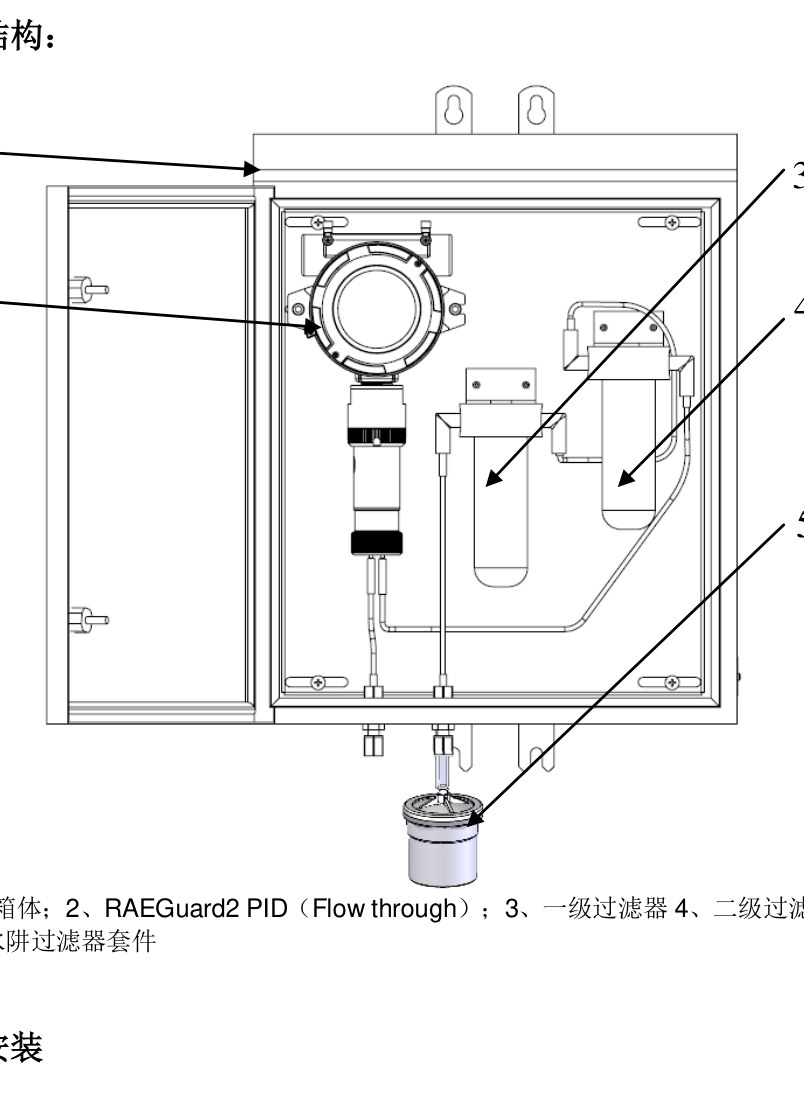

Callouts: box, host, first stage, second stage, trap — 1 box　2 host　3 first stage　4 second stage　5 trap

Inlet and outlet tubes on the host — Longer tube to IN, the other to the outlet

Состав комплекта

Order D03-0014-C00 for the outdoor enclosure. The water trap ships in the detector carton, not in this kit.

Box and filters

Outdoor enclosure with first and second stage ×1
First-stage spare 490-0165-000
PTFE inlet and outlet tubes

Drying media

CaCl₂ 30 bags/pack (600-0310-000)
6–9 bags in the second-stage tube
Transparent face out so spent bags show yellow or swollen

Order separately

Flow Through detector
Water trap (in the host box; spare D03-3018-005)
Tubing per metre: 411-0018-037 / 411-0005-000

Последовательность монтажа

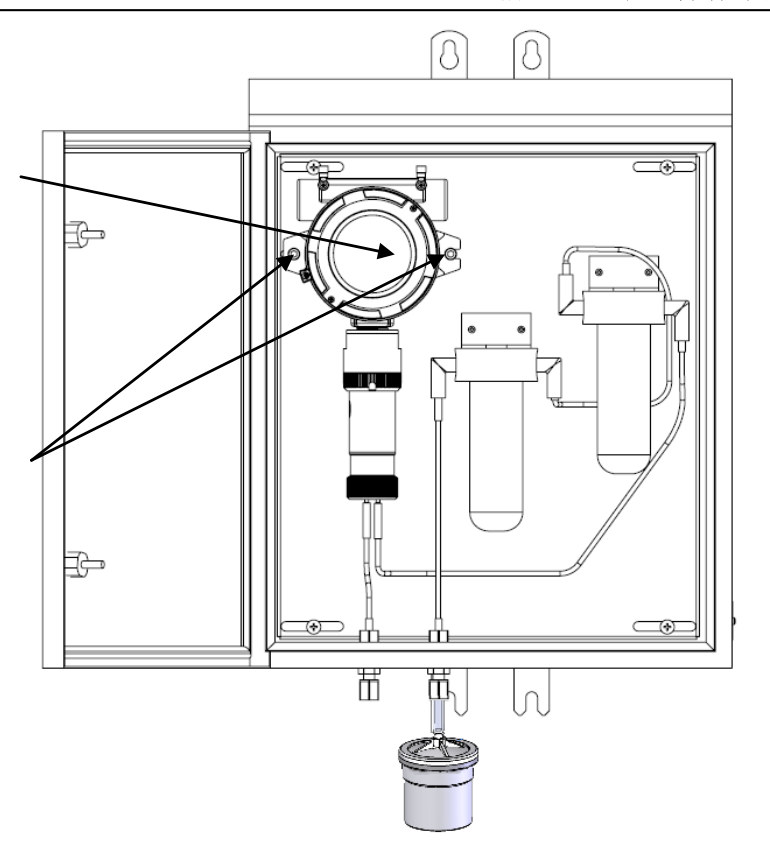

1. Mount the host in the boxFix the Flow Through transmitter in the enclosure with two M6×10 socket screws. Sensor pointing down. Host fastened in the enclosure with two screws

Host fastened in the enclosure with two screws

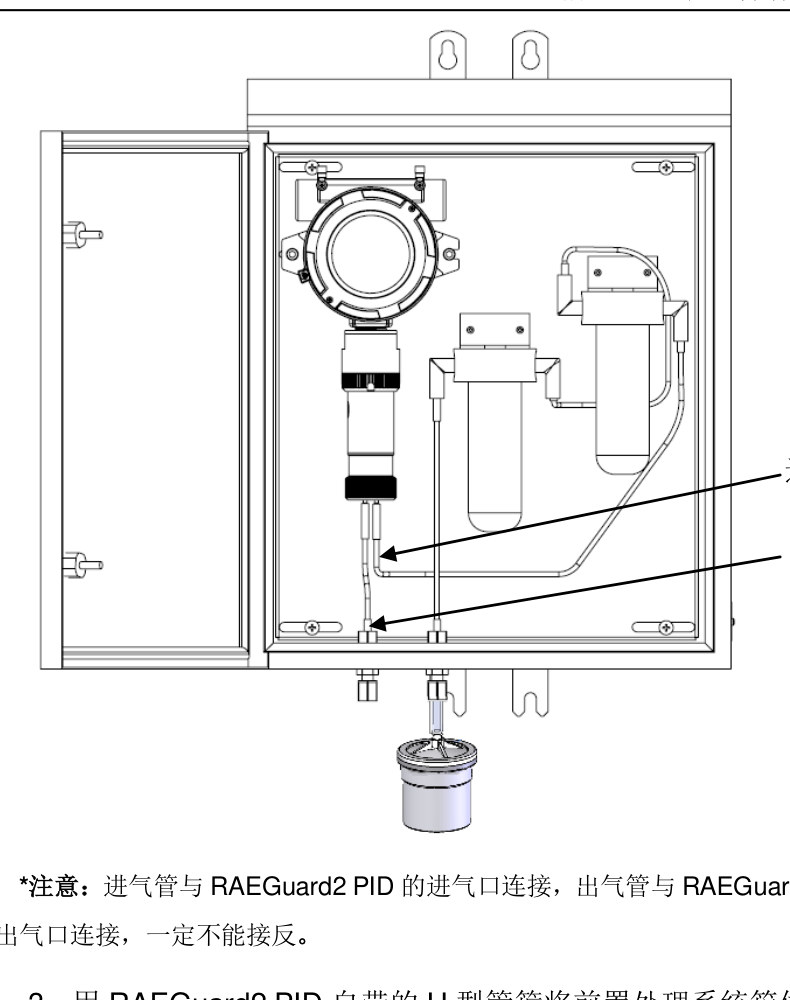

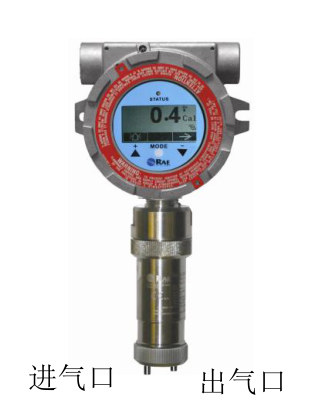

2. Inlet and outlet tubesTwo loose PTFE tubes: the longer one to inlet IN, the other to the outlet. Do not reverse them. Flow Through inlet and outlet

3. Clamp to the riserUse the host U-bolts to hang the enclosure on a 2″ riser. Box bottom at least 30 cm above grade. Install layout, box at least 30 cm above grade

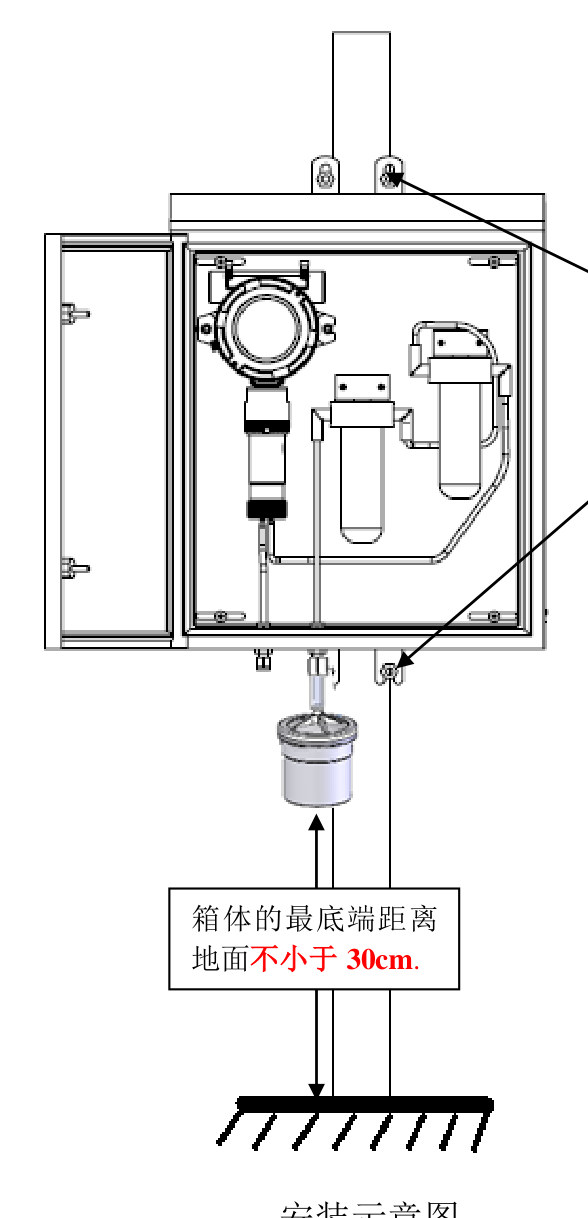

Install layout, box at least 30 cm above grade

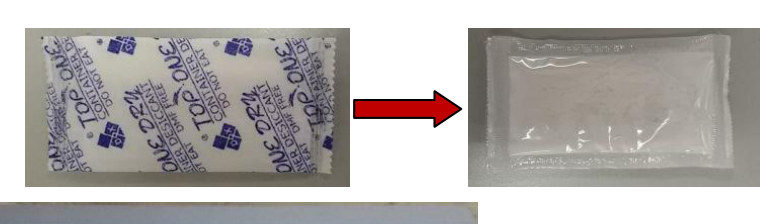

4. Fill CaCl₂Unscrew the second-stage Teflon cartridge, load 6–9 bags with the non-woven wrap removed, transparent face out, then refit the cartridge. Strip the CaCl₂ wrap before filling

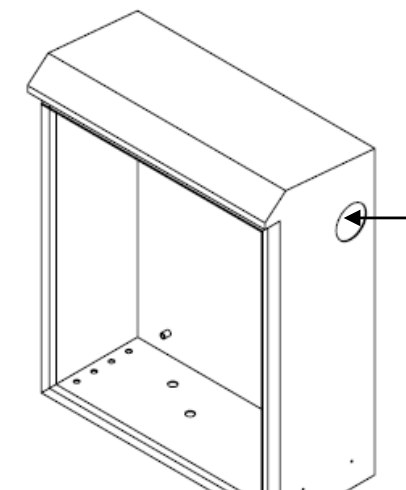

5. Knock-outs for wiringTap out the left and right knock-out plates before pulling cable. Do not hammer the box. Side knock-out and bottom ports

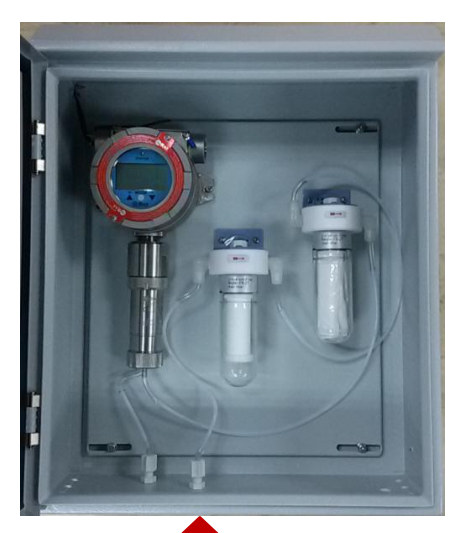

6. Fit the water trapPush the trap hose from the detector carton onto the inlet. Skip the trap and liquid reaches the lamp window. Water-trap hose on the inlet

Second stage filled, layout inside the box — Two clear filter tubes to the right of the host

On the riser, box at least 30 cm above grade — Box bottom ≥ 30 cm above grade

Side knock-outs for cable — Tap out the side plates before wiring

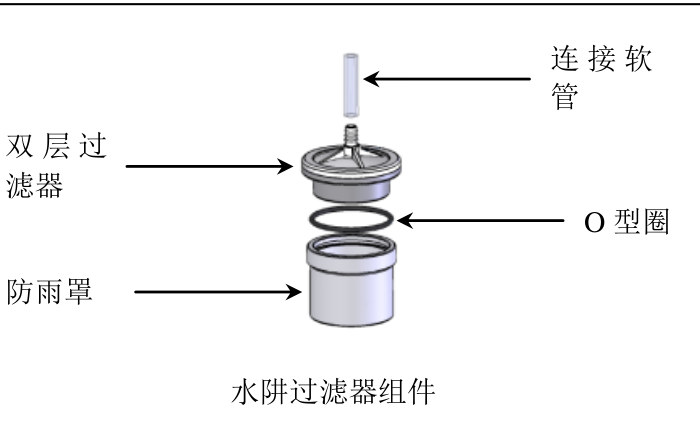

Water trap exploded — Hose, dual-layer cartridge, O-ring, bowl

Габариты

Box about 500 × 410 × 184 mm; about 581 mm tall with mounting ears, about 193 mm deep with the door. Cable entry on the side, sample ports on the bottom.

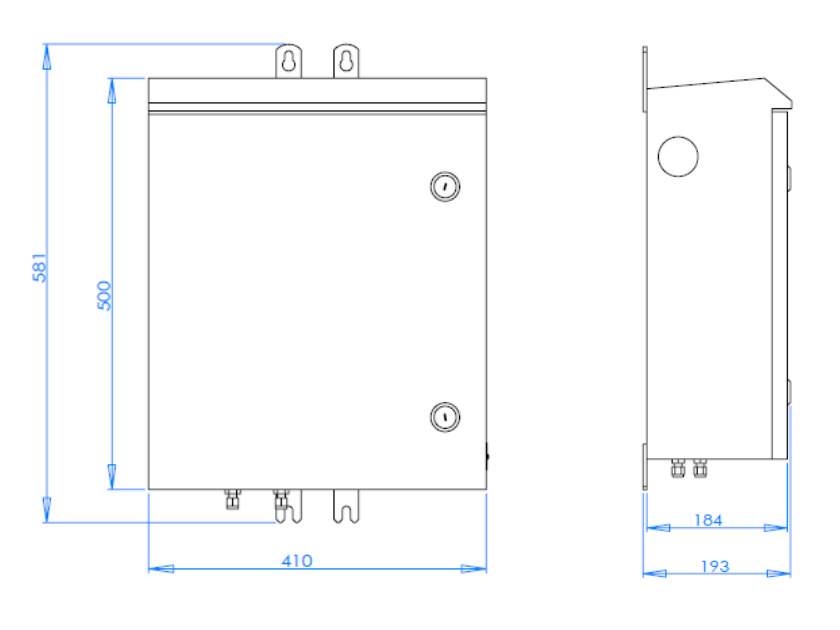

Enclosure outline dimensions — Front and side: ~581 mm tall, 410 mm wide

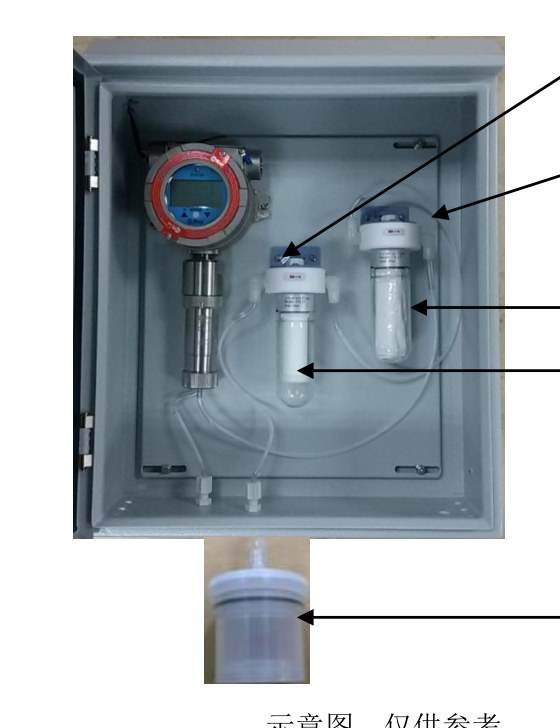

Open the door to change cartridges and CaCl₂ — First and second stage tubes and bottom plumbing

Интервал обслуживания

Check on the table after a new install. Use the short end of each range in hot, wet or dusty outdoor air. After a CaCl₂ change, two-point calibrate with the filters in line.

Item	P/N	Interval	Action
First-stage cartridge	490-0165-000	6–12 months	Replace if the Teflon element blocks flow.
Calcium chloride packs	600-0310-000	3–6 months	Replace if bags swell or the salt turns yellow. 6–9 bags in the second stage.
Water-trap filter, pack of 5	D03-3018-005	2–3 months	Replace the dual-layer cartridge if the PTFE disc blocks. Keep a trap fitted.
PTFE tubing	411-0005-000	Per metre	Inlet / outlet plumbing inside the box.
Polyethylene tubing	411-0018-037	Per metre	Trap-to-inlet hose.

Yellow or swollen bags are spent. Do not touch the lamp window. Other work follows the host manual; before swapping DigiPID, enter sensor-replace mode with the magnetic wand so the sensor is powered down.

Скачать руководство предобработки (PDF)

Артикулы

P/N	Тип	Диапазон / отбор	Описание
D03-0014-C00	Комплект	—	KIT, air prefilter with outdoor enclosure, China
600-0310-000	Аксессуар	—	Calcium chloride, 30 packs / bag
411-0018-037	ЗИП	—	Polyethylene tubing / metre
411-0005-000	ЗИП	—	PTFE hard tubing / metre
490-0165-000	ЗИП	—	Filter
D03-3018-005	ЗИП	—	Water-trap filter assembly / pack of 5, Flow Through
